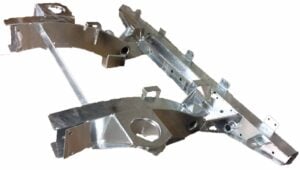

Defender 90″ 200/300 Tdi Rear 1/3 Chassis 900Mm Long Chassis Legs
Price range: £455.03 through £539.28 Ex.VAT
Defender 90″ 200/300 Tdi Rear 1/3 Chassis 900Mm Long Chassis Legs
Description
Defender 90″ 200/300 Tdi Rear 1/3 Chassis 900Mm Long Chassis Legs
former Bearmach Part Number Br3399A
see LR510 For Rear Crossmember Body Spec
inc In The Rear 1/3 Chassis Are The Anti-Roll Towbar Brackets (LR511-20) Spring Seats (LR540A) And Body Mounts, Chassis Rails Are Made From 2.5Mm Steel Fully Welded With Joggled Ends
for Fitment You Remove The Old Rusty Rear Of The Chassis Just To The Rear Of The Shocker Mount Holes
the New LR411 Lines Up With The Old Shocker Holes For Ease Of Fitting
We Highly Recommend Once Fitted You Use A Waxoyl Or Equivalent To Get Into All The Assembly To Help Protect The Internal Side Of The Assembly To Protect From Rust
available In
LR411 Standard Thickness OE Black Powder Coated Finish
LR411G Standard Thickness OE Hot Dip Galvanised Finish
LR411 Hd 3Mm Heavy Duty Black Powder Coated Finish
LR411Hdg 3Mm Heavy Duty Hot Dip Galvanised Finish
Additional information
| Weight | 30 kg |
|---|---|
| Dimensions | 152 × 90 × 22 cm |
| Variants | Heavy Duty 3mm Thickness Material, Heavy Duty 3mm Thickness Material Galvanised Finish, Standard OE Thickness Material, Standard OE Thickness Material Galvanised Finish |
Essential Parts for Installation
Need every part listed above to get the job done?
Add All Fitting Parts to CartVehicle & Engine Compatibility
